BSI-5.0S2R0MA vs NGA10S15033SC

This detailed comparison of BSI-5.0S2R0MA and NGA10S15033SC in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

BSI-5.0S2R0MA

Bellnix Co., LTD.

Request For Quote

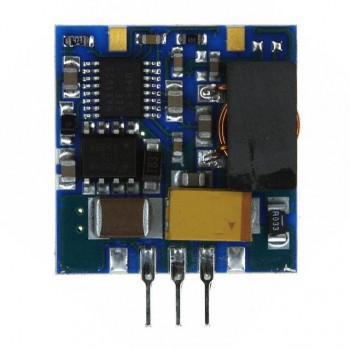

NGA10S15033SC

Murata Power Solutions

Request For Quote

Specifications Hide identical items

Manufacturer	Bellnix Co., LTD.	Murata Power Solutions
Package / Case	5-SIP Module	5-SIP Module
Description	DC DC CONVERTER 5V 10W	DC DC CONVERTER 3.3V 10W
In Stock	1 217	353
Mounting Type	Through Hole	Through Hole
Part Status	Active	Obsolete
Series	BSI-mini (10W)	NGA
Package	Bulk	Tray
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Number of Outputs	1	1
Voltage - Input (Min)	6V	4.75V
Voltage - Input (Max)	16.5V	28V
Voltage - Output 1	5V	3.3V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	2A	2A
Power (Watts)	10 W	10 W
Voltage - Isolation	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	Adjustable Output, Remote On/Off	-
Operating Temperature	-10°C ~ 70°C (With Derating)	-40°C ~ 85°C
Efficiency	93%	94%
Size / Dimension	0.80" L x 0.33" W x 0.94" H (20.2mm x 8.3mm x 24.0mm)	0.83" L x 0.22" W x 0.88" H (21.1mm x 5.6mm x 22.4mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
