CHB300W-24S28 vs CHB300W-24S24N

This detailed comparison of CHB300W-24S28 and CHB300W-24S24N in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

CHB300W-24S28

Cincon

Request For Quote

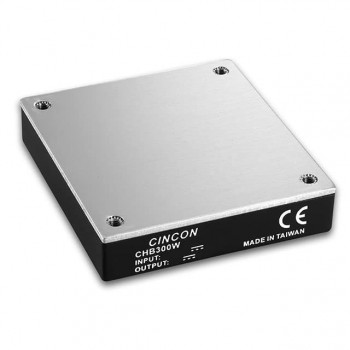

CHB300W-24S24N

Cincon

Request For Quote

Specifications Hide identical items

Manufacturer	Cincon	Cincon
Package / Case	Half Brick	Half Brick
Description	DC DC CONVERTER 28V 300W	DC DC CONVERTER 24V 300W
In Stock	412	1 469
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	CHB300W (300W)	CHB300W (300W)
Package	Tray	Tray
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	9V	9V
Voltage - Input (Max)	36V	36V
Voltage - Output 1	28V	24V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	10.7A	12.5A
Power (Watts)	300 W	300 W
Voltage - Isolation	1.5 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature	-40°C ~ 100°C (With Derating)	-40°C ~ 100°C (With Derating)
Efficiency	88.5%	88%
Size / Dimension	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package	-	-
Control Features	Enable, Active High	Enable, Active Low
Approval Agency	CE, cURus	CE, cURus
Standard Number	-	-
