EC5BU-24S05 vs PXB15-48WS05/NT

This detailed comparison of EC5BU-24S05 and PXB15-48WS05/NT in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

EC5BU-24S05

Cincon

Request For Quote

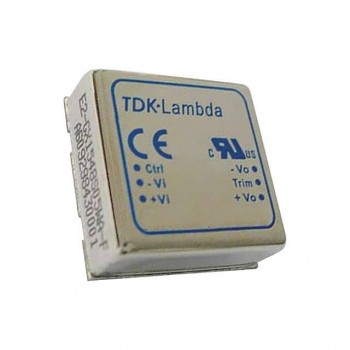

PXB15-48WS05/NT

TDK-Lambda, Inc.

Request For Quote

Specifications Hide identical items

Manufacturer	Cincon	TDK-Lambda, Inc.
Package / Case	6-DIP Module	6-DIP Module
Description	DC DC CONVERTER 5V 15W	DC DC CONVERTER 5V 15W
In Stock	136	113
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	EC5BU (15W)	PXB (15W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	18V	18V
Voltage - Input (Max)	36V	75V
Voltage - Output 1	5V	5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	3A	3A
Power (Watts)	15 W	15 W
Voltage - Isolation	1.5 kV	1.6 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	OCP, OTP, OVP, SCP, UVLO	Remote On/Off, OCP, OVP, SCP
Operating Temperature	-40°C ~ 85°C (With Derating)	-40°C ~ 85°C
Efficiency	89%	86%
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Supplier Device Package	-	-
Control Features	-	Enable, Active Low
Approval Agency	-	-
Standard Number	-	-
