EC8AW-48S05 vs EC6AW-48S05

This detailed comparison of EC8AW-48S05 and EC6AW-48S05 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

EC8AW-48S05

Cincon

Request For Quote

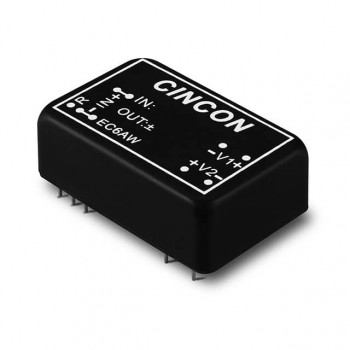

EC6AW-48S05

Cincon

Request For Quote

Specifications Hide identical items

Manufacturer	Cincon	Cincon
Package / Case	24-DIP Module, 9 Leads	24-DIP Module, 9 Leads
Description	DC DC CONVERTER 5V 15W	DC DC CONVERTER 5V 8W
In Stock	754	1 508
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	EC8AW (15W)	EC6AW (8W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	18V	18V
Voltage - Input (Max)	75V	75V
Voltage - Output 1	5V	5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	3A	1.6A
Power (Watts)	15 W	8 W
Voltage - Isolation	1.5 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial), Railway
Features	Remote On/Off, OCP, OVP, SCP, UVLO	Remote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature	-40°C ~ 85°C (With Derating)	-40°C ~ 85°C (With Derating)
Efficiency	90%	83%
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package	-	-
Control Features	-	Enable, Active High
Approval Agency	-	-
Standard Number	-	-
