JCD0624D03 vs JCD0524D03

This detailed comparison of JCD0624D03 and JCD0524D03 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

JCD0624D03

XP Power

Request For Quote

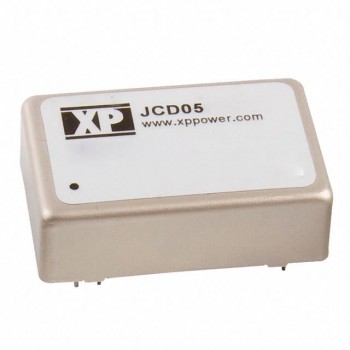

JCD0524D03

XP Power

Request For Quote

Specifications Hide identical items

Manufacturer	XP Power	XP Power
Package / Case	24-DIP Module, 8 Leads	24-DIP Module, 8 Leads
Description	DC DC CONVERTER +/-3.3V 6W	DC DC CONVERTER +/-3.3V 5W
In Stock	950	1 290
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	JCD (6W)	JCD (5W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	2	2
Voltage - Input (Min)	18V	18V
Voltage - Input (Max)	36V	36V
Voltage - Output 1	3.3V	3.3V
Voltage - Output 2	-3.3V	-3.3V
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	909mA	750mA
Power (Watts)	6 W	5 W
Voltage - Isolation	1.6 kV	1.6 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	OCP, OVP, SCP	OCP, OVP, SCP
Operating Temperature	-40°C ~ 100°C	-40°C ~ 100°C
Efficiency	76%	76%
Size / Dimension	1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)	1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	62368-1	62368-1
