JSE0824S3V3 vs JWE0624S3V3

This detailed comparison of JSE0824S3V3 and JWE0624S3V3 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

JSE0824S3V3

XP Power

Request For Quote

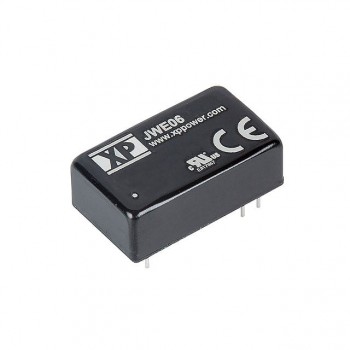

JWE0624S3V3

XP Power

Request For Quote

Specifications Hide identical items

Manufacturer	XP Power	XP Power
Package / Case	16-DIP Module, 6 Leads	16-DIP Module, 6 Leads
Description	DC DC CONVERTER 3.3V 8W	DC DC CONVERTER 3.3V 5W
In Stock	799	580
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	JSE08 (8W)	JWE06 (6W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	18V	9V
Voltage - Input (Max)	36V	36V
Voltage - Output 1	3.3V	3.3V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	1.6A	1.5A
Power (Watts)	8 W	5 W
Voltage - Isolation	1.5 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	SCP, UVLO	OCP, SCP
Operating Temperature	-40°C ~ 105°C	-40°C ~ 105°C (With Derating)
Efficiency	78%	78%
Size / Dimension	0.94" L x 0.54" W x 0.31" H (23.9mm x 13.7mm x 8.0mm)	-
Supplier Device Package	-	16-DIP
Control Features	-	-
Approval Agency	-	-
Standard Number	62368-1	62368-1
