MGFS152415-R vs PYB15-Q24-S15

This detailed comparison of MGFS152415-R and PYB15-Q24-S15 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

MGFS152415-R

Cosel

Request For Quote

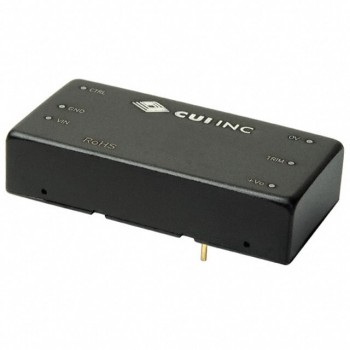

PYB15-Q24-S15

CUI Inc.

Request For Quote

Specifications Hide identical items

Manufacturer	Cosel	CUI Inc.
Package / Case	6-DIP Module	6-DIP Module
Description	DC DC CONVERTER 15V 15W	DC DC CONVERTER 15V 15W
In Stock	96	1 987
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	MGFS (15W)	PYB15 (15W)
Package	Box	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	9V	9V
Voltage - Input (Max)	36V	36V
Voltage - Output 1	15V	15V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	1A	1A
Power (Watts)	15 W	15 W
Voltage - Isolation	1.5 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	-	OCP, OVP, SCP, UVLO
Operating Temperature	-40°C ~ 85°C (With Derating)	-40°C ~ 85°C
Efficiency	89%	89%
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)	2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 11.8mm)
Supplier Device Package	-	-
Control Features	-	Enable, Active High
Approval Agency	-	EN
Standard Number	-	55024
