NPH15S2405EIC vs PXD2024S05

This detailed comparison of NPH15S2405EIC and PXD2024S05 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

NPH15S2405EIC

Murata Power Solutions

Request For Quote

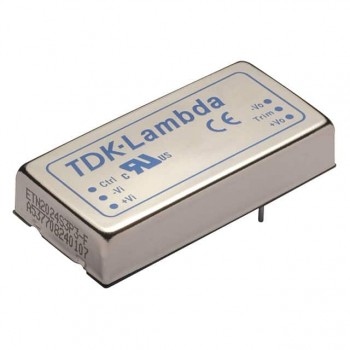

PXD2024S05

TDK-Lambda, Inc.

Request For Quote

Specifications Hide identical items

Manufacturer	Murata Power Solutions	TDK-Lambda, Inc.
Package / Case	6-DIP Module	6-DIP Module
Description	DC DC CONVERTER 5.1V 15W	DC DC CONVERTER 5V 20W
In Stock	739	260
Mounting Type	Through Hole	Through Hole
Part Status	Not For New Designs	Active
Series	NPH15S (15W)	PXD (20W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	18V	18V
Voltage - Input (Max)	36V	36V
Voltage - Output 1	5.1V	5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	3A	4A
Power (Watts)	15 W	20 W
Voltage - Isolation	1.5 kV	1.6 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	-	Remote On/Off, OCP, OVP, SCP
Operating Temperature	-40°C ~ 110°C	-
Efficiency	84%	89%
Size / Dimension	1.97" L x 0.98" W x 0.39" H (50.0mm x 24.9mm x 9.9mm)	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
