PRD25-D48-S5-N-D vs PRD25-D48-S5-P-D

This detailed comparison of PRD25-D48-S5-N-D and PRD25-D48-S5-P-D in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

PRD25-D48-S5-N-D

CUI Inc.

Request For Quote

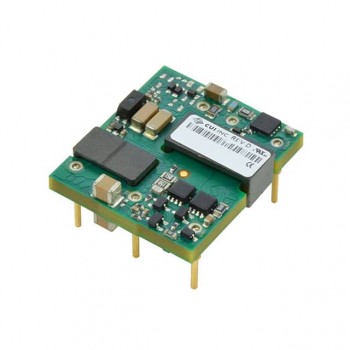

PRD25-D48-S5-P-D

CUI Inc.

Request For Quote

Specifications Hide identical items

Manufacturer	CUI Inc.	CUI Inc.
Package / Case	6-DIP Module	6-DIP Module
Description	DC DC CONVERTER 5V 25W	DC DC CONVERTER 5V 25W
In Stock	443	828
Mounting Type	Through Hole	Through Hole
Part Status	Obsolete	Obsolete
Series	PRD25 (25W)	PRD25 (25W)
Package	Box	Box
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	36V	36V
Voltage - Input (Max)	75V	75V
Voltage - Output 1	5V	5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	5A	5A
Power (Watts)	25 W	25 W
Voltage - Isolation	2.25 kV	2.25 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	91%	91%
Size / Dimension	1.10" L x 0.96" W x 0.33" H (27.9mm x 24.4mm x 8.4mm)	1.10" L x 0.96" W x 0.33" H (27.9mm x 24.4mm x 8.4mm)
Supplier Device Package	-	-
Control Features	Enable, Active Low	Enable, Active High
Approval Agency	-	-
Standard Number	-	-
