PT78NR112S vs PT78NR108S

This detailed comparison of PT78NR112S and PT78NR108S in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

PT78NR112S

VIGOR

Request For Quote

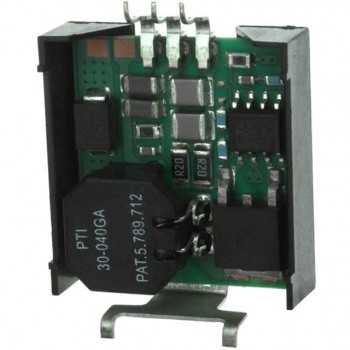

PT78NR108S

Texas Instruments

Request For Quote

Specifications Hide identical items

Manufacturer	VIGOR	Texas Instruments
Package / Case	3-SMD Module	3-SMD Module
Description	SWITCHING REGLTR, VOLTAGE-MODE	DC DC CONVERTER -8V
In Stock	1 631	229
Mounting Type	Surface Mount	Surface Mount
Part Status	Obsolete	Obsolete
Series	PT78NR100	PT78NR100
Package	Tray	Tray
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Number of Outputs	1	1
Voltage - Input (Min)	7V	7V
Voltage - Input (Max)	18V	21V
Voltage - Output 1	-12V	-8V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	400mA	550mA
Power (Watts)	-	-
Voltage - Isolation	-	-
Applications	ITE (Commercial)	ITE (Commercial)
Features	OTP, SCP	OTP, SCP
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	75%	75%
Size / Dimension	0.94" L x 0.90" W x 0.34" H (23.9mm x 22.9mm x 8.6mm)	0.94" L x 0.90" W x 0.34" H (23.9mm x 22.9mm x 8.6mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
