PTMA403033A1AZ vs PTMA403033A1AS

This detailed comparison of PTMA403033A1AZ and PTMA403033A1AS in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

PTMA403033A1AZ

Texas Instruments

Request For Quote

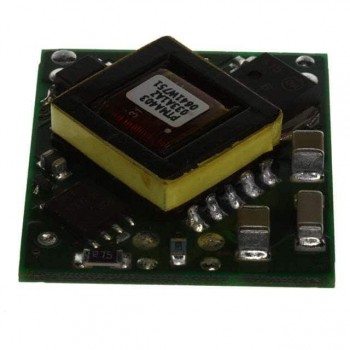

PTMA403033A1AS

Texas Instruments

Request For Quote

Specifications Hide identical items

Manufacturer	Texas Instruments	Texas Instruments
Package / Case	4-SMD Module	4-SMD Module
Description	DC DC CONVERTER 3.3V 10W	DC DC CONVERTER 3.3V 10W
In Stock	1 007	387
Mounting Type	Surface Mount	Surface Mount
Part Status	Not For New Designs	Obsolete
Series	PTMA40xx (10W)	PTMA40xx (10W)
Package	Tray	Tray
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	36V	36V
Voltage - Input (Max)	75V	75V
Voltage - Output 1	3.3V	3.3V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	3A	3A
Power (Watts)	10 W	10 W
Voltage - Isolation	1.5 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	-	-
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	82%	82%
Size / Dimension	1.10" L x 0.96" W x 0.36" H (27.9mm x 24.4mm x 9.1mm)	1.10" L x 0.96" W x 0.36" H (27.9mm x 24.4mm x 9.1mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
