PVB3-D24-S5-D vs PQB3-D24-S5-D

This detailed comparison of PVB3-D24-S5-D and PQB3-D24-S5-D in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

PVB3-D24-S5-D

CUI Inc.

Request For Quote

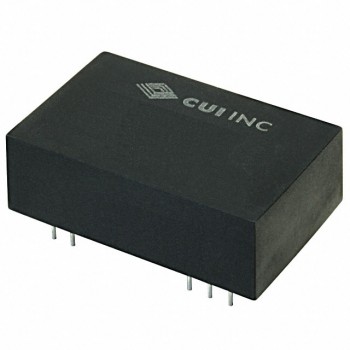

PQB3-D24-S5-D

CUI Inc.

Request For Quote

Specifications Hide identical items

Manufacturer	CUI Inc.	CUI Inc.
Package / Case	24-DIP Module, 10 Leads	24-DIP Module, 10 Leads
Description	DC DC CONVERTER 5V 3W	DC DC CONVERTER 5V 3W
In Stock	1 182	241
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	PVB3-D (3W)	PQB3-D (3W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	18V	18V
Voltage - Input (Max)	36V	36V
Voltage - Output 1	5V	5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	600mA	600mA
Power (Watts)	3 W	3 W
Voltage - Isolation	3 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	OCP, SCP	OCP, SCP
Operating Temperature	-40°C ~ 105°C	-40°C ~ 105°C
Efficiency	81%	81%
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	CB Scheme, EN, IEC, UL	CB Scheme, EN, IEC, UL
Standard Number	55024; 60950-1	55024; 60950-1
