RO-1205S/P vs IE1205S

This detailed comparison of RO-1205S/P and IE1205S in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

RO-1205S/P

RECOM Power

Request For Quote

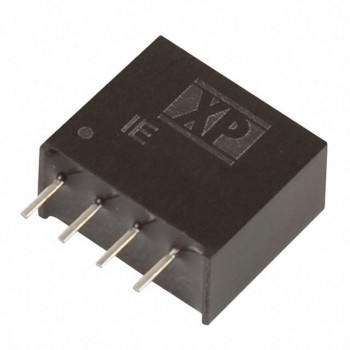

IE1205S

XP Power

Request For Quote

Specifications Hide identical items

Manufacturer	RECOM Power	XP Power
Package / Case	4-SIP Module	4-SIP Module
Description	DC DC CONVERTER 5V 1W	DC DC CONVERTER 5V 1W
In Stock	1 058	132
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	ECONOLINE RO (1W)	IE (1W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	10.8V	10.8V
Voltage - Input (Max)	13.2V	13.2V
Voltage - Output 1	5V	5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	200mA	200mA
Power (Watts)	1 W	1 W
Voltage - Isolation	1 kV	1 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	SCP	-
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	80%	75%
Size / Dimension	0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm)	0.46" L x 0.24" W x 0.50" H (11.7mm x 6.0mm x 12.7mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
