RP15-123.3SF vs CCG152403S

This detailed comparison of RP15-123.3SF and CCG152403S in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

RP15-123.3SF

RECOM Power

Request For Quote

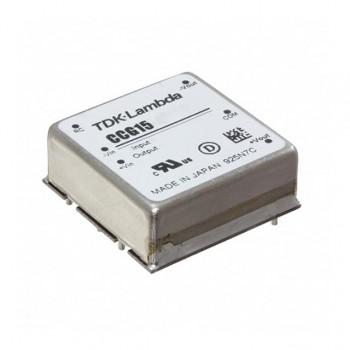

CCG152403S

TDK-Lambda, Inc.

Request For Quote

Specifications Hide identical items

Manufacturer	RECOM Power	TDK-Lambda, Inc.
Package / Case	6-DIP Module	6-DIP Module
Description	DC DC CONVERTER 3.3V 15W	DC DC CONVERTER 3.3V 15W
In Stock	259	225
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	POWERLINE RP15-F (15W)	CCG15 (15W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	9V	9V
Voltage - Input (Max)	18V	36V
Voltage - Output 1	3.3V	3.3V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	4A	4A
Power (Watts)	15 W	15 W
Voltage - Isolation	1.6 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	OCP, OVP, SCP	Remote On/Off, OCP, OVP
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	79%	85%
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Supplier Device Package	-	-
Control Features	-	Enable, Active Low
Approval Agency	-	-
Standard Number	-	-
