RW2-2405S/H3/B vs SLC03B-05

This detailed comparison of RW2-2405S/H3/B and SLC03B-05 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

RW2-2405S/H3/B

RECOM Power

Request For Quote

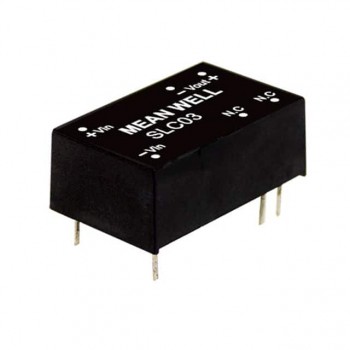

SLC03B-05

MEAN WELL

Request For Quote

Specifications Hide identical items

Manufacturer	RECOM Power	MEAN WELL
Package / Case	16-DIP Module, 6 Leads	16-DIP Module, 6 Leads
Description	DC DC CONVERTER 5V 2W	DC DC CONVERTER 5V 3W
In Stock	730	782
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	ECONOLINE RW2 (2W)	SLC03 (3W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	18V	18V
Voltage - Input (Max)	36V	36V
Voltage - Output 1	5V	5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	400mA	600mA
Power (Watts)	2 W	3 W
Voltage - Isolation	3 kV	1.5 kV
Applications	ITE (Commercial), Medical	ITE (Commercial)
Features	SCP	OCP, SCP, UVLO
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C (With Derating)
Efficiency	78%	81%
Size / Dimension	0.87" L x 0.49" W x 0.33" H (22.1mm x 12.6mm x 8.5mm)	0.87" L x 0.54" W x 0.34" H (22.1mm x 13.8mm x 8.6mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
