RW2-243.3S/H3/SMD vs ISP2403A

This detailed comparison of RW2-243.3S/H3/SMD and ISP2403A in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

RW2-243.3S/H3/SMD

RECOM Power

Request For Quote

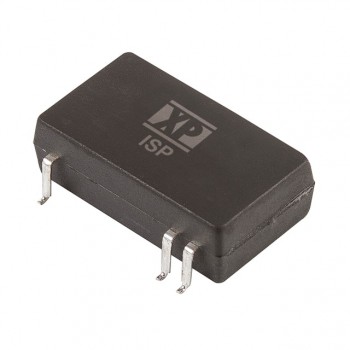

ISP2403A

XP Power

Request For Quote

Specifications Hide identical items

Manufacturer	RECOM Power	XP Power
Package / Case	16-SMD Module, 6 Leads	16-SMD Module, 6 Leads
Description	DC DC CONVERTER 3.3V 2W	DC DC CONVERTER 3.3V 2W
In Stock	1 635	578
Mounting Type	Surface Mount	Surface Mount
Part Status	Active	Obsolete
Series	ECONOLINE RW2 (2W)	ISP (2W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	18V	18V
Voltage - Input (Max)	36V	36V
Voltage - Output 1	3.3V	3.3V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	500mA	500mA
Power (Watts)	2 W	2 W
Voltage - Isolation	3 kV	1.5 kV
Applications	ITE (Commercial), Medical	ITE (Commercial)
Features	SCP	SCP
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	70%	72%
Size / Dimension	0.95" L x 0.57" W x 0.40" H (24.2mm x 14.5mm x 10.2mm)	0.94" L x 0.54" W x 0.31" H (23.9mm x 13.7mm x 8.0mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
