SDM30-48S15 vs SDM30-48S12

This detailed comparison of SDM30-48S15 and SDM30-48S12 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

SDM30-48S15

MEAN WELL

Request For Quote

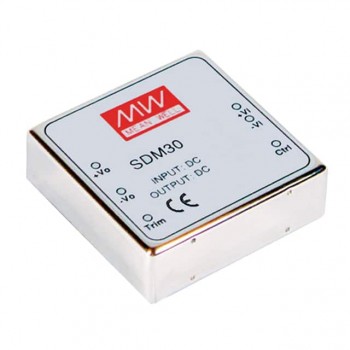

SDM30-48S12

MEAN WELL

Request For Quote

Specifications Hide identical items

Manufacturer	MEAN WELL	MEAN WELL
Package / Case	8-DIP Module	8-DIP Module
Description	DC DC CONVERTER 15V 30W	DC DC CONVERTER 12V 30W
In Stock	60	1 145
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	SDM30 (30W)	SDM30 (30W)
Package	Box	Box
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	36V	36V
Voltage - Input (Max)	72V	72V
Voltage - Output 1	15V	12V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	2A	2.5A
Power (Watts)	30 W	30 W
Voltage - Isolation	1 kV	1 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP	Remote On/Off, OCP, OVP, SCP
Operating Temperature	-25°C ~ 85°C (With Derating)	-25°C ~ 85°C (With Derating)
Efficiency	85%	84%
Size / Dimension	2.00" L x 2.00" W x 0.63" H (50.8mm x 50.8mm x 16.0mm)	2.00" L x 2.00" W x 0.63" H (50.8mm x 50.8mm x 16.0mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
