SKE10C-15 vs EC4BW13

This detailed comparison of SKE10C-15 and EC4BW13 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

SKE10C-15

MEAN WELL

Request For Quote

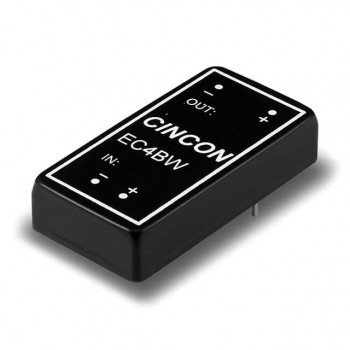

EC4BW13

Cincon

Request For Quote

Specifications Hide identical items

Manufacturer	MEAN WELL	Cincon
Package / Case	5-DIP Module	5-DIP Module
Description	DC DC CONVERTER 15V 10W	DC DC CONVERTER 15V 10W
In Stock	1 636	460
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	SKE10 (10W)	EC4BW (10W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	36V	18V
Voltage - Input (Max)	72V	72V
Voltage - Output 1	15V	15V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	666mA	666mA
Power (Watts)	10 W	10 W
Voltage - Isolation	1 kV	500 V
Applications	ITE (Commercial)	ITE (Commercial)
Features	OCP, SCP	SCP
Operating Temperature	-25°C ~ 71°C (With Derating)	-40°C ~ 100°C (With Derating)
Efficiency	82%	81%
Size / Dimension	2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.3mm)	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
