SKM15B-12 vs PDQE15-Q48-S12-D

This detailed comparison of SKM15B-12 and PDQE15-Q48-S12-D in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

SKM15B-12

MEAN WELL

Request For Quote

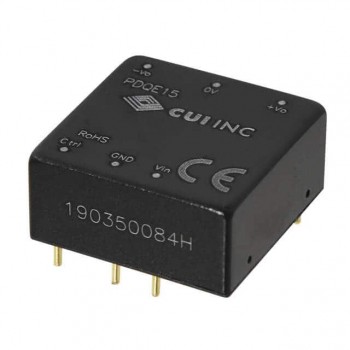

PDQE15-Q48-S12-D

CUI Inc.

Request For Quote

Specifications Hide identical items

Manufacturer	MEAN WELL	CUI Inc.
Package / Case	6-DIP Module	6-DIP Module
Description	DC DC CONVERTER 12V 15W	DC DC CONVERTER 12V 15W
In Stock	1 264	1 737
Mounting Type	Through Hole	Through Hole
Part Status	Not For New Designs	Active
Series	SKM15 (15W)	PDQE15-D (15W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	18V	18V
Voltage - Input (Max)	36V	75V
Voltage - Output 1	12V	12V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	1.25A	1.25A
Power (Watts)	15 W	15 W
Voltage - Isolation	1.5 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP	Remote On/Off, OCP, OVP, SCP
Operating Temperature	-40°C ~ 80°C (With Derating)	-40°C ~ 105°C (With Derating)
Efficiency	87%	91%
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)	1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	CB Scheme, EN, IEC, UL
Standard Number	-	55024; 55032 Class A; 62368-1
