TEL 8-1211 vs TEL 8-2411WI

This detailed comparison of TEL 8-1211 and TEL 8-2411WI in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

TEL 8-1211

TRACO Power

Request For Quote

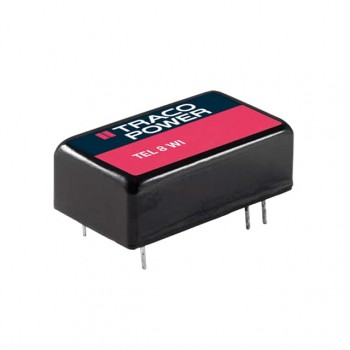

TEL 8-2411WI

TRACO Power

Request For Quote

Specifications Hide identical items

Manufacturer	TRACO Power	TRACO Power
Package / Case	16-DIP Module, 6 Leads	16-DIP Module, 6 Leads
Description	DC DC CONVERTER 5V 8W	DC DC CONVERTER 5V 8W
In Stock	1 935	1 279
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	TEL 8 (8W)	TEL 8WI (8W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	9V	9V
Voltage - Input (Max)	18V	36V
Voltage - Output 1	5V	5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	1.6A	1.6A
Power (Watts)	8 W	8 W
Voltage - Isolation	1.5 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	SCP	SCP
Operating Temperature	-40°C ~ 80°C	-40°C ~ 80°C (With Derating)
Efficiency	81%	82%
Size / Dimension	0.95" L x 0.55" W x 0.33" H (24.1mm x 14.0mm x 8.5mm)	0.95" L x 0.55" W x 0.33" H (24.1mm x 14.0mm x 8.5mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
