TEN 25-4811 vs PYB30-Q48-S5

This detailed comparison of TEN 25-4811 and PYB30-Q48-S5 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

TEN 25-4811

TRACO Power

Request For Quote

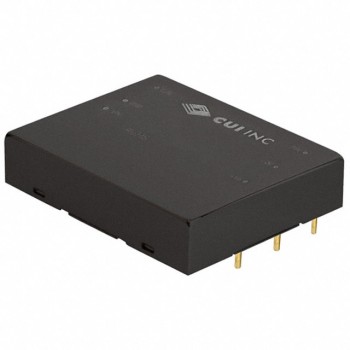

PYB30-Q48-S5

CUI Inc.

Request For Quote

Specifications Hide identical items

Manufacturer	TRACO Power	CUI Inc.
Package / Case	7-DIP Module, 6 Leads	7-DIP Module, 6 Leads
Description	DC DC CONVERTER 5V 25W	DC DC CONVERTER 5V 30W
In Stock	253	147
Mounting Type	Through Hole	Through Hole
Part Status	Not For New Designs	Active
Series	TEN 25 (30W)	PYB30 (30W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	48V	18V
Voltage - Input (Max)	75V	75V
Voltage - Output 1	5V	5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	5A	6A
Power (Watts)	25 W	30 W
Voltage - Isolation	1.5 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP	Remote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature	-40°C ~ 85°C (With Derating)	-40°C ~ 85°C
Efficiency	85%	88%
Size / Dimension	2.00" L x 1.60" W x 0.37" H (50.8mm x 40.6mm x 9.5mm)	2.00" L x 1.60" W x 0.47" H (50.8mm x 40.6mm x 11.8mm)
Supplier Device Package	-	-
Control Features	-	Enable, Active High
Approval Agency	-	-
Standard Number	-	-
