TEN 40-1210N vs EC9BW-24S33

This detailed comparison of TEN 40-1210N and EC9BW-24S33 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

TEN 40-1210N

TRACO Power

Request For Quote

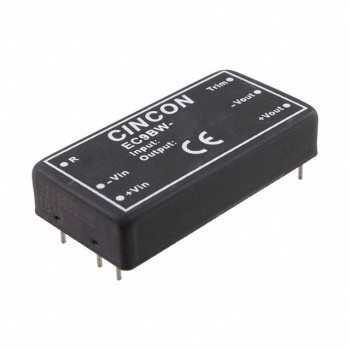

EC9BW-24S33

Cincon

Request For Quote

Specifications Hide identical items

Manufacturer	TRACO Power	Cincon
Package / Case	6-DIP Module	6-DIP Module
Description	DC DC CONVERTER 3.3V 26W	DC DC CONVERTER 3.3V 25W
In Stock	351	237
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	TEN 40N (40W)	EC9BW (30W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	9V	9V
Voltage - Input (Max)	18V	36V
Voltage - Output 1	3.3V	3.3V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	8A	7.5A
Power (Watts)	26 W	25 W
Voltage - Isolation	1.5 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, OVP, SCP, UVLO	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature	-40°C ~ 80°C (With Derating)	-40°C ~ 85°C (With Derating)
Efficiency	89%	88.5%
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package	-	-
Control Features	-	Enable, Active High
Approval Agency	-	-
Standard Number	-	-
