TEN 6-2415N vs JTE0624S24

This detailed comparison of TEN 6-2415N and JTE0624S24 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

TEN 6-2415N

TRACO Power

Request For Quote

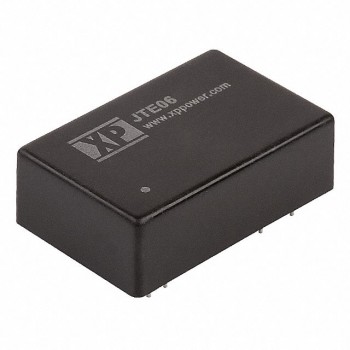

JTE0624S24

XP Power

Request For Quote

Specifications Hide identical items

Manufacturer	TRACO Power	XP Power
Package / Case	24-DIP Module, 7 Leads	24-DIP Module, 7 Leads
Description	DC DC CONVERTER 24V 6W	DC DC CONVERTER 24V 6W
In Stock	693	467
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	TEN 6N (6W)	JTE (6W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	18V	9V
Voltage - Input (Max)	36V	36V
Voltage - Output 1	24V	24V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	250mA	250mA
Power (Watts)	6 W	6 W
Voltage - Isolation	1.5 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	OCP, SCP	OCP, SCP, UVLO
Operating Temperature	-40°C ~ 85°C (With Derating)	-40°C ~ 100°C
Efficiency	84%	84%
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	62368-1
