TES 2N-4811 vs ISR4805A

This detailed comparison of TES 2N-4811 and ISR4805A in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

TES 2N-4811

TRACO Power

Request For Quote

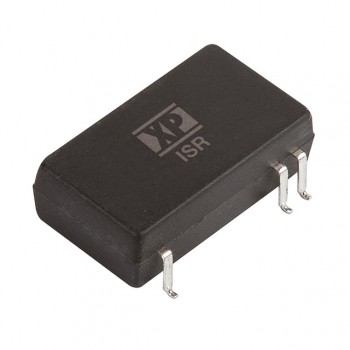

ISR4805A

XP Power

Request For Quote

Specifications Hide identical items

Manufacturer	TRACO Power	XP Power
Package / Case	16-SMD Module, 6 Leads	16-SMD Module, 6 Leads
Description	DC DC CONVERTER 5V 2W	DC DC CONVERTER 5V 3W
In Stock	1 451	1 514
Mounting Type	Surface Mount	Surface Mount
Part Status	Not For New Designs	Obsolete
Series	TES 2N (2W)	ISR (3W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	36V	36V
Voltage - Input (Max)	75V	75V
Voltage - Output 1	5V	5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	400mA	600mA
Power (Watts)	2 W	3 W
Voltage - Isolation	1.5 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	SCP	SCP
Operating Temperature	-40°C ~ 85°C (With Derating)	-40°C ~ 95°C
Efficiency	73%	77%
Size / Dimension	0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm)	0.94" L x 0.54" W x 0.31" H (23.9mm x 13.7mm x 8.0mm)
Supplier Device Package	-	-
Control Features	-	-
Approval Agency	-	-
Standard Number	-	-
