TON 15-4811SM vs EC3SB-48S05S

This detailed comparison of TON 15-4811SM and EC3SB-48S05S in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

TON 15-4811SM

TRACO Power

Request For Quote

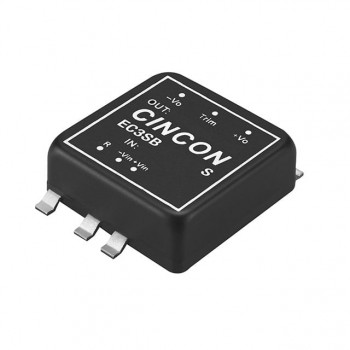

EC3SB-48S05S

Cincon

Request For Quote

Specifications Hide identical items

Manufacturer	TRACO Power	Cincon
Package / Case	6-SMD Module	6-SMD Module
Description	DC DC CONVERTER 5V 15W	DC DC CONVERTER 5V 15W
In Stock	771	1 169
Mounting Type	Surface Mount	Surface Mount
Part Status	Not For New Designs	Active
Series	TON 15 (15W)	EC3SB (15W)
Package	Tray	Strip
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	36V	36V
Voltage - Input (Max)	75V	75V
Voltage - Output 1	5V	5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	3A	3A
Power (Watts)	15 W	15 W
Voltage - Isolation	2.25 kV	1.5 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP, UVLO	Remote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature	-40°C ~ 85°C (With Derating)	-40°C ~ 105°C (With Derating)
Efficiency	87%	88%
Size / Dimension	1.10" L x 0.94" W x 0.33" H (27.9mm x 23.9mm x 8.5mm)	1.00" L x 1.00" W x 0.36" H (25.4mm x 25.4mm x 9.2mm)
Supplier Device Package	-	-
Control Features	-	Enable, Active High
Approval Agency	-	-
Standard Number	-	-
