UWS-5/10-Q48N-C vs UWS-5/10-Q48P-C

This detailed comparison of UWS-5/10-Q48N-C and UWS-5/10-Q48P-C in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

UWS-5/10-Q48N-C

Murata Power Solutions

Request For Quote

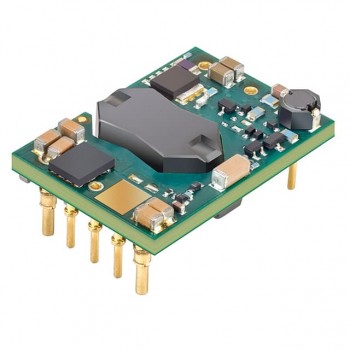

UWS-5/10-Q48P-C

Murata Power Solutions

Request For Quote

Specifications Hide identical items

Manufacturer	Murata Power Solutions	Murata Power Solutions
Package / Case	8-DIP Module, 1/16 Brick	8-DIP Module, 1/16 Brick
Description	DC DC CONVERTER 5V 50W	DC DC CONVERTER 5V 50W
In Stock	605	59
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	UWS	UWS
Package	Tray	Tray
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	18V	18V
Voltage - Input (Max)	75V	75V
Voltage - Output 1	5V	5V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	10A	10A
Power (Watts)	50 W	50 W
Voltage - Isolation	2.25 kV	2.25 kV
Applications	ITE (Commercial)	ITE (Commercial)
Features	Remote On/Off, UVLO	Remote On/Off, UVLO
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	91%	91%
Size / Dimension	1.31" L x 0.91" W x 0.36" H (33.3mm x 23.1mm x 9.1mm)	1.31" L x 0.91" W x 0.36" H (33.3mm x 23.1mm x 9.1mm)
Supplier Device Package	-	-
Control Features	Enable, Active Low	Enable, Active High
Approval Agency	-	-
Standard Number	-	-
