VHS1-S12-S12-SIP vs MDS01M-12

This detailed comparison of VHS1-S12-S12-SIP and MDS01M-12 in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

VHS1-S12-S12-SIP

CUI Inc.

Request For Quote

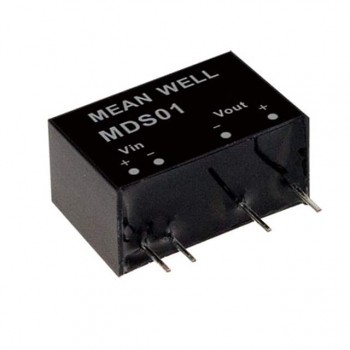

MDS01M-12

MEAN WELL

Request For Quote

Specifications Hide identical items

Manufacturer	CUI Inc.	MEAN WELL
Package / Case	7-SIP Module, 4 Leads	7-SIP Module, 4 Leads
Description	DC DC CONVERTER 12V 1W	DC DC CONVERTER 12V 1W
In Stock	585	1 998
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	VHS1-SIP (1W)	MDS01 (1W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	10.8V	10.8V
Voltage - Input (Max)	13.2V	13.2V
Voltage - Output 1	12V	12V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	84mA	84mA
Power (Watts)	1 W	1 W
Voltage - Isolation	6 kV	6 kV
Applications	Medical	Medical
Features	SCP	SCP
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	78%	82%
Size / Dimension	0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)	0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
Supplier Device Package	-	7-SIP
Control Features	-	-
Approval Agency	UL	-
Standard Number	60950-1	-
