PDQ30-Q24-S3-D vs RPA30-243.3SAW/N

This detailed comparison of PDQ30-Q24-S3-D and RPA30-243.3SAW/N in the DC DC Converters provides valuable insights into their specifications and features. Key aspects such as Manufacturer, Package, Mounting Type, and core parameters are thoroughly analyzed. This side-by-side comparison simplifies component selection. To learn more, explore their datasheets or request a quote directly.

PDQ30-Q24-S3-D

CUI Inc.

Request For Quote

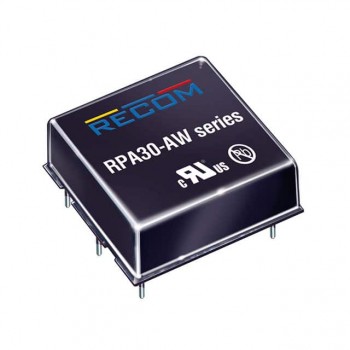

RPA30-243.3SAW/N

RECOM Power

Request For Quote

Specifications Hide identical items

Manufacturer	CUI Inc.	RECOM Power
Package / Case	6-DIP Module	6-DIP Module
Description	DC DC CONVERTER 3.3V 30W	DC DC CONVERTER 3.3V 30W
In Stock	18	1 260
Mounting Type	Through Hole	Through Hole
Part Status	Active	Active
Series	PDQ30-D (30W)	POWERLINE RPA30-AW (30W)
Package	Tube	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	9V	9V
Voltage - Input (Max)	36V	36V
Voltage - Output 1	3.3V	3.3V
Voltage - Output 2	-	-
Voltage - Output 3	-	-
Voltage - Output 4	-	-
Current - Output (Max)	7.5A	7.5A
Power (Watts)	30 W	30 W
Voltage - Isolation	1.5 kV	1.6 kV
Applications	ITE (Commercial)	ITE (Commercial), Railway
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature	-40°C ~ 105°C	-40°C ~ 105°C (With Derating)
Efficiency	88%	88%
Size / Dimension	1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)	1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Supplier Device Package	-	-
Control Features	Enable, Active High	Enable, Active Low
Approval Agency	-	-
Standard Number	-	-
