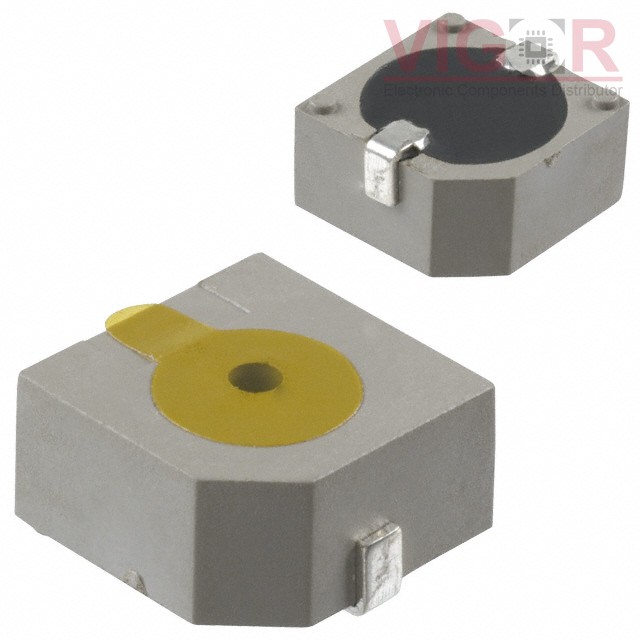

AST501Q

Part No :: AST501Q

Manufacturer: Mallory Sonalert Products

VIGOR # :: 1980656

Description: AUDIO MAGNETIC XDCR 1-2V SMD

Catalog: Alarms, Buzzers, and Sirens

DataSheet: AST501Q PDF

Country of origin: -

Date code: -

AST501Q Specifications

Type	Description
Series:	AST
Package:	Tube
Part Status:	Active
Driver Circuitry:	Transducer, Externally Driven
Input Type:	Peak-Peak Signal
Voltage - Rated:	1.5 V
Voltage Range:	1 ~ 2V
Frequency:	2.4kHz
Technology:	Magnetic
Operating Mode:	Single Tone
Duration:	-
Sound Pressure Level (SPL):	85dB @ 1.5V, 10cm
Current - Supply:	50mA
Port Location:	Top
Operating Temperature:	-20°C ~ 70°C
Approval Agency:	-
Ratings:	Washable
Ingress Protection:	-
Mounting Type:	Surface Mount
Termination:	Solder Pads
Size / Dimension:	0.496" L x 0.496" W (12.60mm x 12.60mm)
Height - Seated (Max):	0.283" (7.20mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 18

Shipped from

HK warehouse

Expected Shipping Date

Jan 03 - Jan 07 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.25~~	~~$3.25~~
10	~~$2.58~~	~~$25.77~~
35	~~$2.35~~	~~$82.29~~
70	~~$2.20~~	~~$153.74~~
105	~~$2.04~~	~~$214.36~~
280	~~$1.87~~	~~$524.30~~
525	~~$1.76~~	~~$923.92~~

Current price of AST501Q is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
