EEV-TG1H681UM

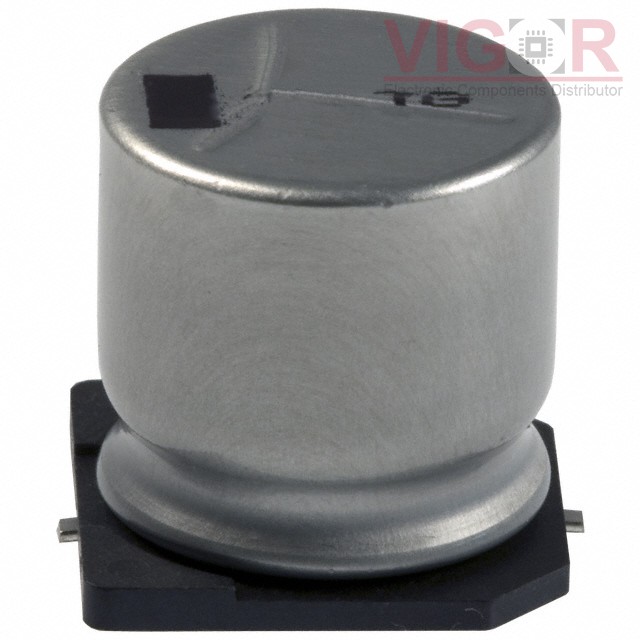

Image is for reference,
please contact us to get the real picture

Part No :: EEV-TG1H681UM

Manufacturer: Panasonic

Description: CAP ALUM 680UF 20% 50V SMD

Catalog: Aluminum Electrolytic Capacitors

DataSheet: EEV-TG1H681UM PDF

Availability: 98 pieces

Unit Price: ~~$2.54000~~

Current price of EEV-TG1H681UM is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EEV-TG1H681UM Specifications

Type	Description
Series:	TG
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Capacitance:	680 µF
Tolerance:	±20%
Voltage - Rated:	50 V
ESR (Equivalent Series Resistance):	150mOhm @ 100kHz
Lifetime @ Temp.:	2000 Hrs @ 125°C
Operating Temperature:	-40°C ~ 125°C
Polarization:	Polar
Ratings:	AEC-Q200
Applications:	Automotive
Ripple Current @ Low Frequency:	585 mA @ 120 Hz
Ripple Current @ High Frequency:	900 mA @ 100 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.630" Dia (16.00mm)
Height - Seated (Max):	0.650" (16.50mm)
Surface Mount Land Size:	0.669" L x 0.669" W (17.00mm x 17.00mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD
