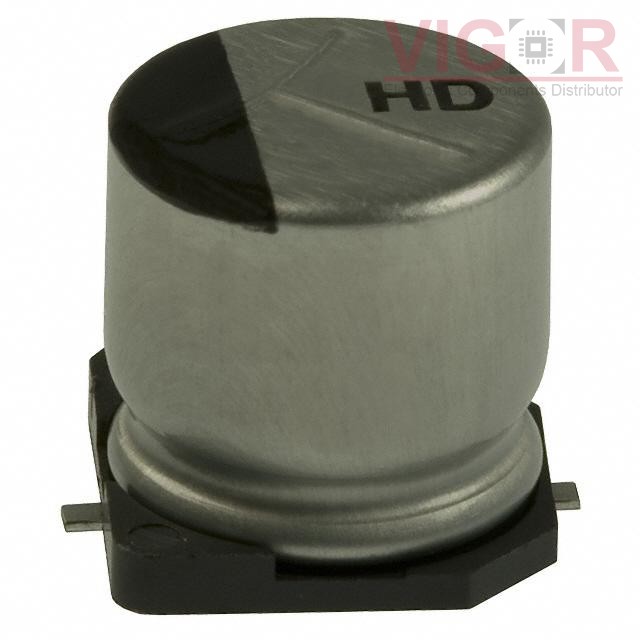

EEE-HD1A682AM

Part No :: EEE-HD1A682AM

Manufacturer: Panasonic

Description: CAP ALUM 6800UF 20% 10V SMD

Catalog: Aluminum Electrolytic Capacitors

DataSheet: EEE-HD1A682AM PDF

Availability: 462 pieces

Current price of EEE-HD1A682AM is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EEE-HD1A682AM Specifications

Type	Description
Series:	HD
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Capacitance:	6800 µF
Tolerance:	±20%
Voltage - Rated:	10 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	5000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	AEC-Q200
Applications:	Automotive, High Temperature Reflow
Ripple Current @ Low Frequency:	1.54 A @ 120 Hz
Ripple Current @ High Frequency:	1.817 A @ 100 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.709" Dia (18.00mm)
Height - Seated (Max):	0.669" (17.00mm)
Surface Mount Land Size:	0.748" L x 0.748" W (19.00mm x 19.00mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD
