UPJ1E561MPD1TD

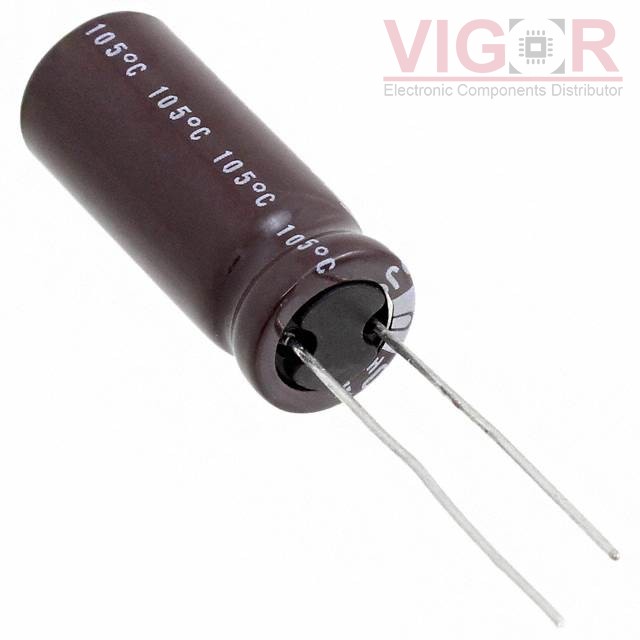

Image is for reference,
please contact us to get the real picture

Part No :: UPJ1E561MPD1TD

Manufacturer: Nichicon

Description: CAP ALUM 560UF 20% 25V RADIAL

Catalog: Aluminum Electrolytic Capacitors

DataSheet: UPJ1E561MPD1TD PDF

Availability: 997 pieces

Unit Price: ~~$0.81000~~

Current price of UPJ1E561MPD1TD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

UPJ1E561MPD1TD Specifications

Type	Description
Series:	UPJ
Package:	Cut Tape (CT)Tape & Box (TB)
Part Status:	Active
Capacitance:	560 µF
Tolerance:	±20%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	5000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	990 mA @ 120 Hz
Ripple Current @ High Frequency:	1.22 A @ 10 kHz
Impedance:	84 mOhms
Lead Spacing:	0.197" (5.00mm)
Size / Dimension:	0.394" Dia (10.00mm)
Height - Seated (Max):	1.063" (27.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Please confirm the specifications of the products when ordering.
