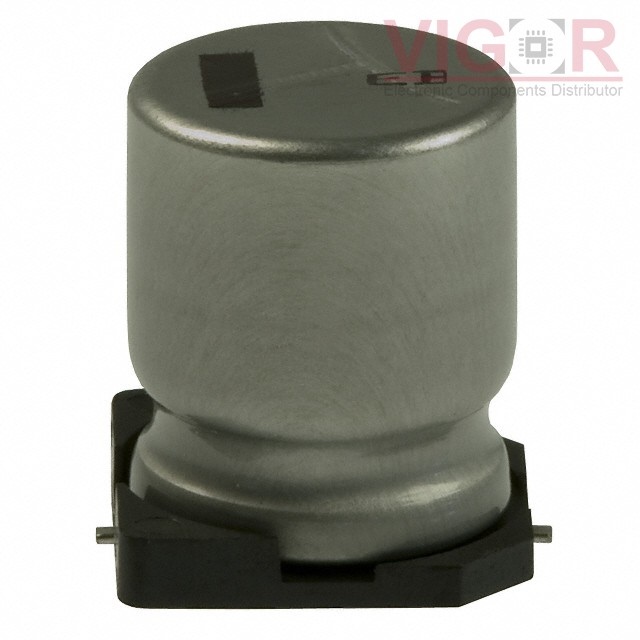

EEV-EB2D220SQ

Part No :: EEV-EB2D220SQ

Manufacturer: Panasonic

Description: CAP ALUM 22UF 20% 200V SMD

Catalog: Aluminum Electrolytic Capacitors

DataSheet: EEV-EB2D220SQ PDF

Availability: 11 pieces

Current price of EEV-EB2D220SQ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EEV-EB2D220SQ Specifications

Type	Description
Series:	EB
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Capacitance:	22 µF
Tolerance:	±20%
Voltage - Rated:	200 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	5000 Hrs @ 105°C
Operating Temperature:	-25°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	258.5 mA @ 120 Hz
Ripple Current @ High Frequency:	470 mA @ 100 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.492" Dia (12.50mm)
Height - Seated (Max):	0.669" (17.00mm)
Surface Mount Land Size:	0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD
