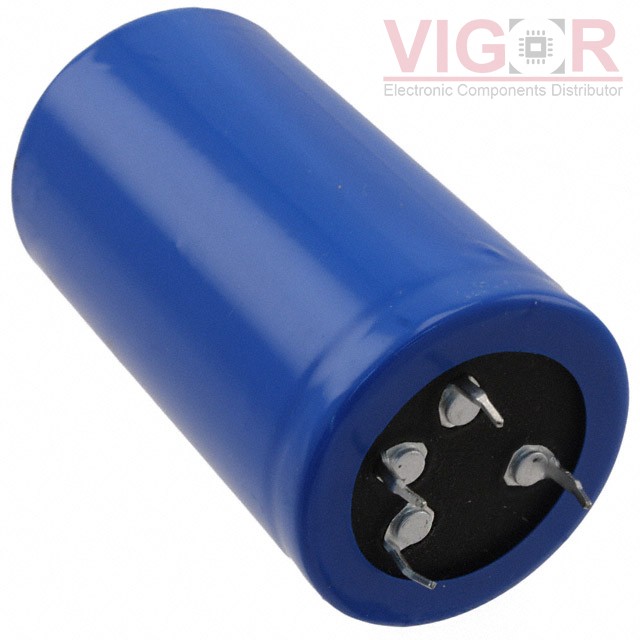

MAL209629561E3

Part No :: MAL209629561E3

Manufacturer: Vishay BC Components/Beyshlag/Draloric

VIGOR # :: 926441

Description: CAP ALUM 560UF 20% 500V SNAP

Catalog: Aluminum Electrolytic Capacitors

DataSheet: MAL209629561E3 PDF

Country of origin: -

Date code: -

MAL209629561E3 Specifications

Type	Description
Series:	096 PLL-4TSI
Package:	Bulk
Part Status:	Active
Capacitance:	560 µF
Tolerance:	±20%
Voltage - Rated:	500 V
ESR (Equivalent Series Resistance):	336mOhm
Lifetime @ Temp.:	5000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	-
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	-
Ripple Current @ High Frequency:	5.55 A @ 10 kHz
Impedance:	299 mOhms
Lead Spacing:	0.886" (22.50mm)
Size / Dimension:	1.575" Dia (40.00mm)
Height - Seated (Max):	2.362" (60.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can - Snap-In - 4 Lead

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 20 - Jan 24 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$25.94~~	~~$25.94~~
250	~~$24.89~~	~~$6 222.00~~

Current price of MAL209629561E3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

10ZLS1800MEFC10X20

CAP ALUM 1800UF 20% 10V RADIAL

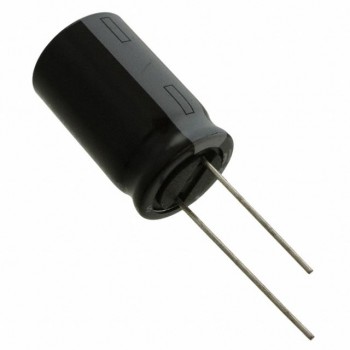

25PX4700MEFCGC16X25
