EEE-TP70681M

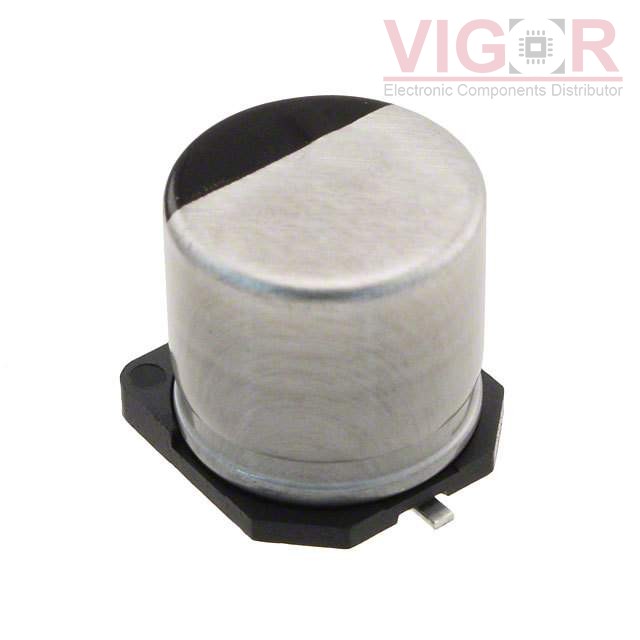

Product image
Product thumb
Part No :

EEE-TP70681M

Manufacturer
Panasonic
VIGOR # :

931371

Description
CAP ALUM 680UF 20% 70V RADIAL
Catalog
Aluminum Electrolytic Capacitors
DataSheet
EEE-TP70681M PDF
Country of origin
-
Date code
-
ads
EEE-TP70681M Specifications
Type Description
Series:TP
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Capacitance:680 µF
Tolerance:±20%
Voltage - Rated:70 V
ESR (Equivalent Series Resistance):95mOhm @ 100kHz
Lifetime @ Temp.:3000 Hrs @ 125°C
Operating Temperature:-55°C ~ 125°C
Polarization:Polar
Ratings:AEC-Q200
Applications:Automotive, High Temperature Reflow
Ripple Current @ Low Frequency:1.5 A @ 120 Hz
Ripple Current @ High Frequency:2 A @ 100 kHz
Impedance:-
Lead Spacing:-
Size / Dimension:0.709" Dia (18.00mm)
Height - Seated (Max):0.669" (17.00mm)
Surface Mount Land Size:0.748" L x 0.748" W (19.00mm x 19.00mm)
Mounting Type:Surface Mount
Package / Case:Radial, Can - SMD
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 305
Shipped from
HK warehouse
Expected Shipping Date
Jan 25 - Jan 29 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $3.43 $3.43
125 $2.03 $253.15
250 $1.74 $433.98
625 $1.54 $964.39
875 $1.45 $1 265.77
1250 $1.35 $1 687.68
3125 $1.30 $4 068.53
6250 $1.25 $7 835.69

Current price of EEE-TP70681M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
