109LBA025M2DC

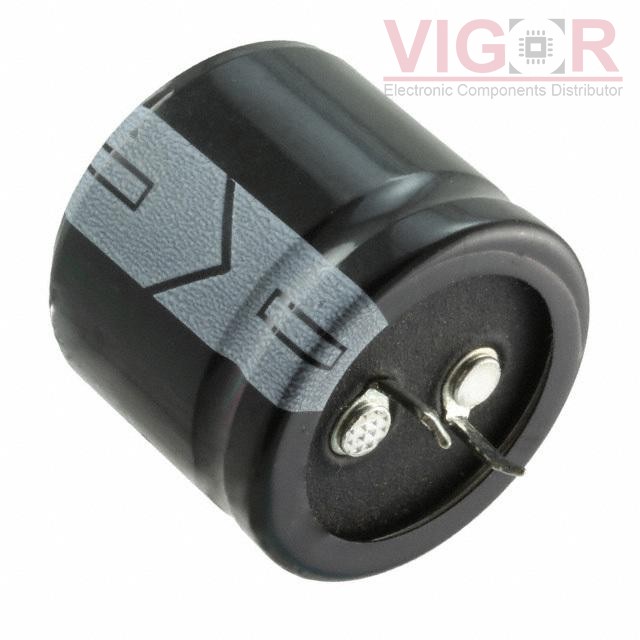

Product image
Product thumb
Part No :

109LBA025M2DC

Manufacturer
Cornell Dubilier Electronics
VIGOR # :

936073

Description
CAP ALUM 10000UF 20% 25V SNAP
Catalog
Aluminum Electrolytic Capacitors
DataSheet
109LBA025M2DC PDF
Country of origin
-
Date code
-
ads
109LBA025M2DC Specifications
Type Description
Series:LBA
Package:Bulk
Part Status:Active
Capacitance:10000 µF
Tolerance:±20%
Voltage - Rated:25 V
ESR (Equivalent Series Resistance):74.6mOhm @ 120Hz
Lifetime @ Temp.:2000 Hrs @ 85°C
Operating Temperature:-40°C ~ 85°C
Polarization:Polar
Ratings:-
Applications:General Purpose
Ripple Current @ Low Frequency:3.31 A @ 120 Hz
Ripple Current @ High Frequency:4.1375 A @ 10 kHz
Impedance:-
Lead Spacing:0.394" (10.00mm)
Size / Dimension:1.181" Dia (30.00mm)
Height - Seated (Max):1.063" (27.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can - Snap-In
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Jan 25 - Jan 29 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.81 $1.81
10 $1.46 $14.62
100 $1.14 $114.07
500 $0.85 $424.12
1000 $0.79 $789.74
2500 $0.76 $1 901.22
5000 $0.75 $3 729.35

Current price of 109LBA025M2DC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
