LGNW6561MELC45

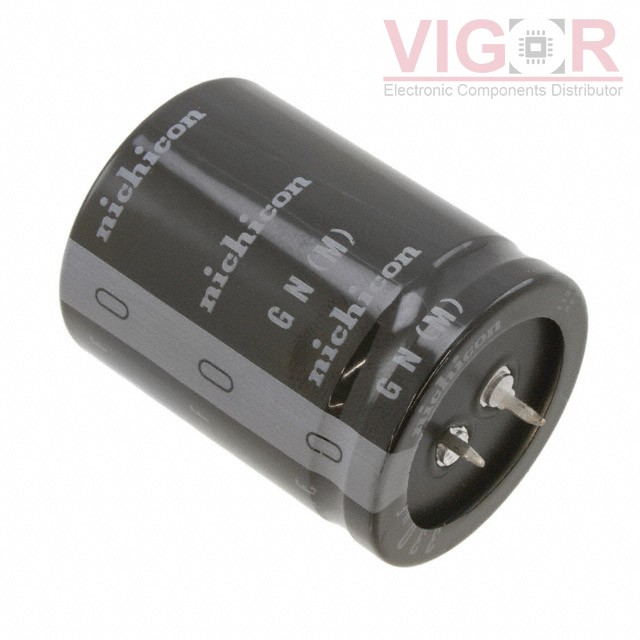

Product image
Product thumb
Part No :

LGNW6561MELC45

Manufacturer
Nichicon
VIGOR # :

941270

Description
CAP ALUM 560UF 20% 420V SNAP
Catalog
Aluminum Electrolytic Capacitors
DataSheet
LGNW6561MELC45 PDF
Country of origin
-
Date code
-
ads
LGNW6561MELC45 Specifications
Type Description
Series:LGN
Package:Bulk
Part Status:Active
Capacitance:560 µF
Tolerance:±20%
Voltage - Rated:420 V
ESR (Equivalent Series Resistance):-
Lifetime @ Temp.:3000 Hrs @ 105°C
Operating Temperature:-25°C ~ 105°C
Polarization:Polar
Ratings:-
Applications:General Purpose
Ripple Current @ Low Frequency:2.1 A @ 120 Hz
Ripple Current @ High Frequency:3.003 A @ 50 kHz
Impedance:-
Lead Spacing:0.394" (10.00mm)
Size / Dimension:1.378" Dia (35.00mm)
Height - Seated (Max):1.850" (47.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can - Snap-In
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 164
Shipped from
HK warehouse
Expected Shipping Date
Jan 02 - Jan 06 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $8.84 $8.84
10 $7.85 $78.54
100 $6.28 $628.37
500 $5.40 $2 700.02
1000 $5.34 $5 341.14

Current price of LGNW6561MELC45 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
