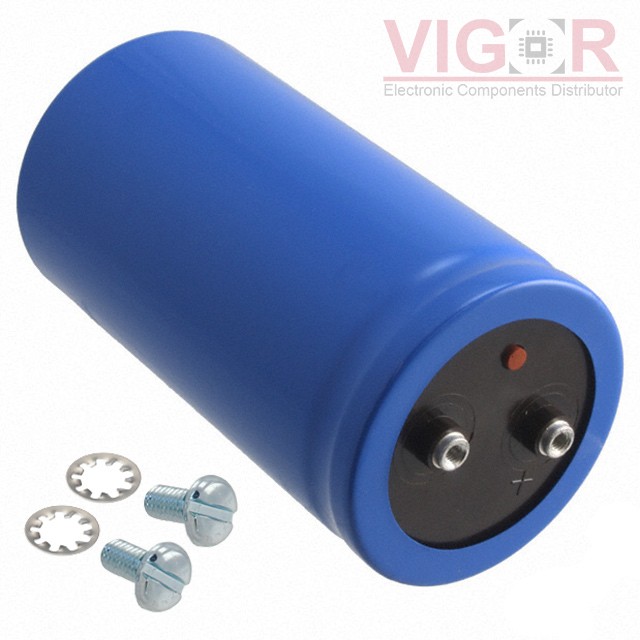

CGS772T200X5L

Part No :: CGS772T200X5L

Manufacturer: Cornell Dubilier Electronics

VIGOR # :: 941781

Description: CAP ALUM 7700UF 200V SCREW

Catalog: Aluminum Electrolytic Capacitors

DataSheet: CGS772T200X5L PDF

Country of origin: -

Date code: -

CGS772T200X5L Specifications

Type	Description
Series:	CGS
Package:	Bulk
Part Status:	Active
Capacitance:	7700 µF
Tolerance:	-10%, +50%
Voltage - Rated:	200 V
ESR (Equivalent Series Resistance):	18mOhm @ 120Hz
Lifetime @ Temp.:	2000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	15 A @ 120 Hz
Ripple Current @ High Frequency:	22.5 A @ 10 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	3.000" Dia (76.20mm)
Height - Seated (Max):	5.625" (142.88mm)
Surface Mount Land Size:	-
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can - Screw Terminals

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Feb 04 - Feb 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$76.15~~	~~$76.15~~
20	~~$74.29~~	~~$1 485.86~~

Current price of CGS772T200X5L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

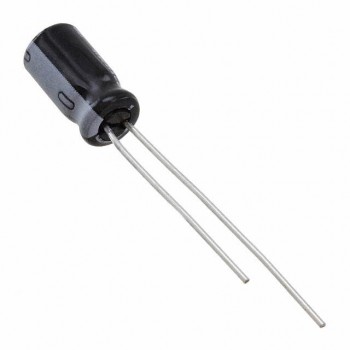

URS1E4R7MDD1TD

CAP ALUM 4.7UF 20% 25V RADIAL

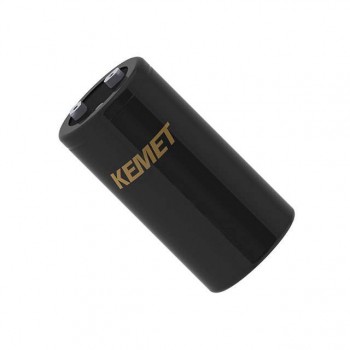

ALS80A513QH100
