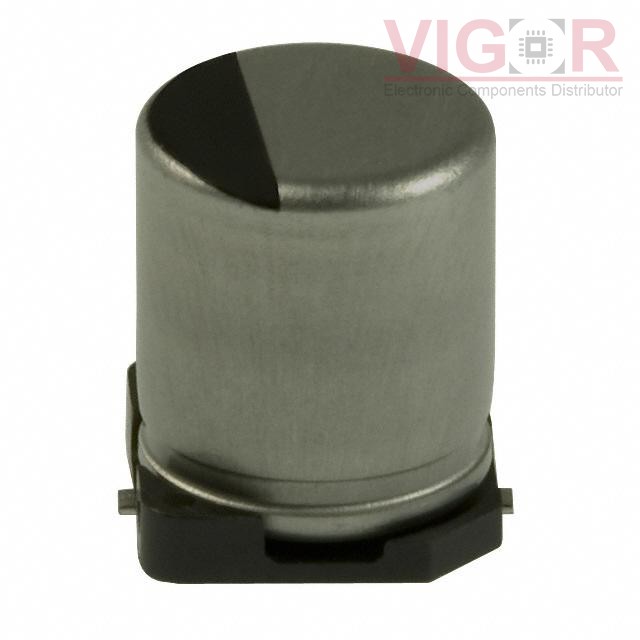

EEE-1EA101XAP

Part No :: EEE-1EA101XAP

Manufacturer: Panasonic

Description: CAP ALUM 100UF 20% 25V SMD

Catalog: Aluminum Electrolytic Capacitors

DataSheet: EEE-1EA101XAP PDF

Availability: 407 pieces

Current price of EEE-1EA101XAP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EEE-1EA101XAP Specifications

Type	Description
Series:	S
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Capacitance:	100 µF
Tolerance:	±20%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	AEC-Q200
Applications:	Automotive
Ripple Current @ Low Frequency:	143 mA @ 120 Hz
Ripple Current @ High Frequency:	243.1 mA @ 10 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.248" Dia (6.30mm)
Height - Seated (Max):	0.303" (7.70mm)
Surface Mount Land Size:	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD
