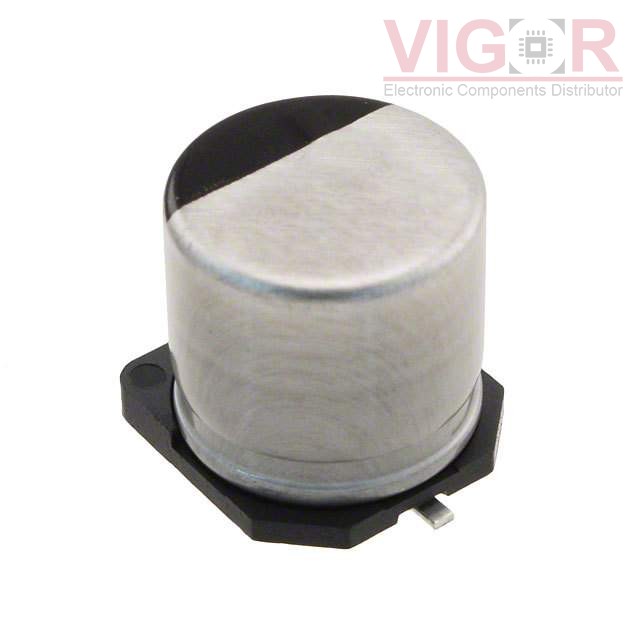

EEE-TP1E101AP

Part No :: EEE-TP1E101AP

Manufacturer: Panasonic

Description: CAP ALUM 100UF 20% 25V SMD

Catalog: Aluminum Electrolytic Capacitors

DataSheet: EEE-TP1E101AP PDF

Availability: 9755 pieces

Current price of EEE-TP1E101AP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EEE-TP1E101AP Specifications

Type	Description
Series:	TP
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Capacitance:	100 µF
Tolerance:	±20%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 125°C
Operating Temperature:	-40°C ~ 125°C
Polarization:	Polar
Ratings:	AEC-Q200
Applications:	Automotive, High Temperature Reflow
Ripple Current @ Low Frequency:	175.5 mA @ 120 Hz
Ripple Current @ High Frequency:	270 mA @ 100 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.315" Dia (8.00mm)
Height - Seated (Max):	0.402" (10.20mm)
Surface Mount Land Size:	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD
