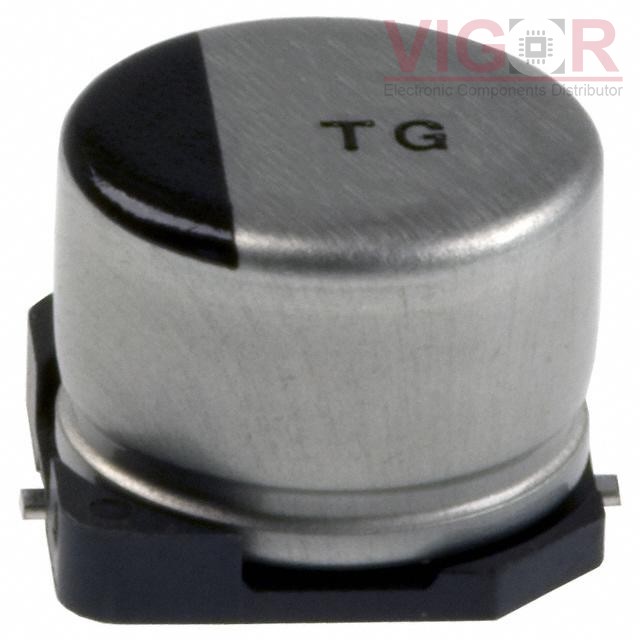

EEV-TG1E101UP

Part No :: EEV-TG1E101UP

Manufacturer: Panasonic

Description: CAP ALUM 100UF 20% 25V SMD

Catalog: Aluminum Electrolytic Capacitors

DataSheet: EEV-TG1E101UP PDF

Availability: 0 pieces

Current price of EEV-TG1E101UP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EEV-TG1E101UP Specifications

Type	Description
Series:	TG
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Capacitance:	100 µF
Tolerance:	±20%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	1Ohm @ 100kHz
Lifetime @ Temp.:	1000 Hrs @ 125°C
Operating Temperature:	-40°C ~ 125°C
Polarization:	Polar
Ratings:	AEC-Q200
Applications:	Automotive
Ripple Current @ Low Frequency:	65 mA @ 120 Hz
Ripple Current @ High Frequency:	100 mA @ 100 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.315" Dia (8.00mm)
Height - Seated (Max):	0.244" (6.20mm)
Surface Mount Land Size:	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD
