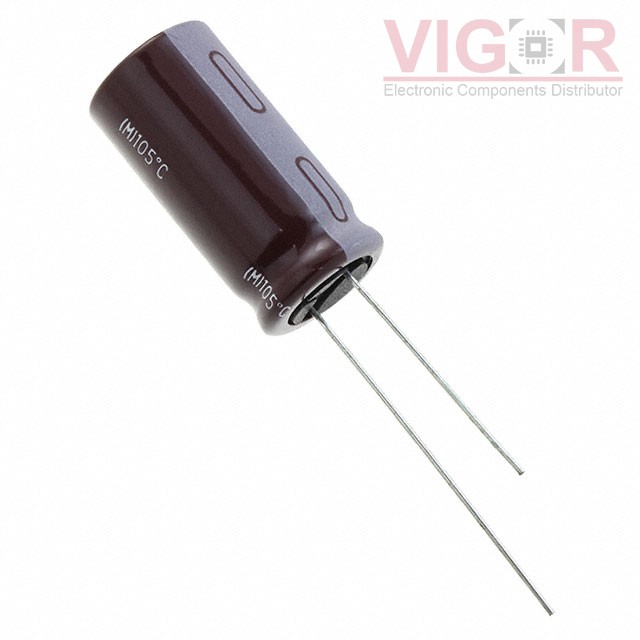

EKZN630ELL561MK25S

Part No :: EKZN630ELL561MK25S

Manufacturer: United Chemi-Con

VIGOR # :: 949155

Description: CAP ALUM 560UF 20% 63V RADIAL

Catalog: Aluminum Electrolytic Capacitors

DataSheet: EKZN630ELL561MK25S PDF

Country of origin: -

Date code: -

EKZN630ELL561MK25S Specifications

Type	Description
Series:	KZN
Package:	Bulk
Part Status:	Active
Capacitance:	560 µF
Tolerance:	±20%
Voltage - Rated:	63 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	10000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	1.23 A @ 120 Hz
Ripple Current @ High Frequency:	2.46 A @ 100 kHz
Impedance:	26 mOhms
Lead Spacing:	0.197" (5.00mm)
Size / Dimension:	0.492" Dia (12.50mm)
Height - Seated (Max):	1.043" (26.50mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 4326

Shipped from

HK warehouse

Expected Shipping Date

Jan 31 - Feb 04 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.75~~	~~$1.75~~
10	~~$1.41~~	~~$14.11~~
100	~~$1.08~~	~~$108.47~~
500	~~$0.85~~	~~$423.03~~
1000	~~$0.76~~	~~$759.31~~
2500	~~$0.72~~	~~$1 789.80~~
5000	~~$0.69~~	~~$3 471.15~~

Current price of EKZN630ELL561MK25S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
