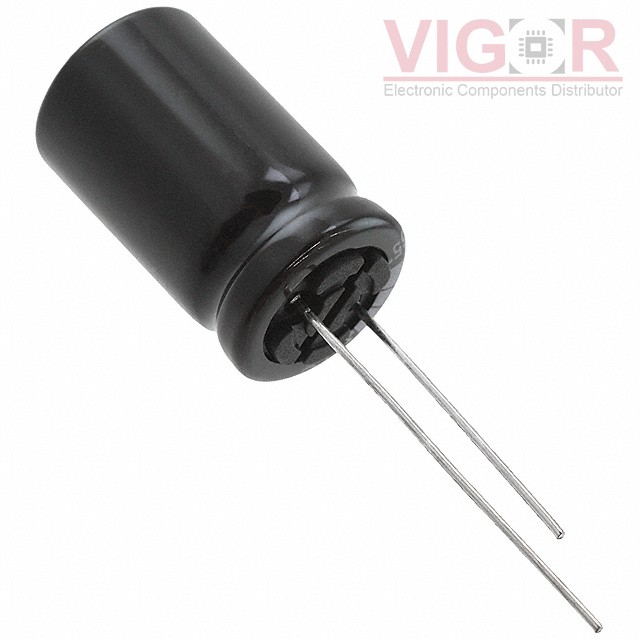

EEU-TP1V561

Part No :: EEU-TP1V561

Manufacturer: Panasonic

VIGOR # :: 949470

Description: CAP ALUM 560UF 20% 35V RADIAL

Catalog: Aluminum Electrolytic Capacitors

DataSheet: EEU-TP1V561 PDF

Country of origin: -

Date code: -

EEU-TP1V561 Specifications

Type	Description
Series:	TP
Package:	Bulk
Part Status:	Active
Capacitance:	560 µF
Tolerance:	±20%
Voltage - Rated:	35 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	4000 Hrs @ 125°C
Operating Temperature:	-40°C ~ 135°C
Polarization:	Polar
Ratings:	AEC-Q200
Applications:	Automotive
Ripple Current @ Low Frequency:	1.395 A @ 120 Hz
Ripple Current @ High Frequency:	1.49 A @ 100 kHz
Impedance:	-
Lead Spacing:	0.197" (5.00mm)
Size / Dimension:	0.492" Dia (12.50mm)
Height - Seated (Max):	0.866" (22.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 854

Shipped from

HK warehouse

Expected Shipping Date

Dec 30 - Jan 03 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.15~~	~~$2.15~~
10	~~$1.70~~	~~$16.98~~
100	~~$1.27~~	~~$127.36~~
500	~~$0.96~~	~~$481.12~~
1000	~~$0.85~~	~~$849.02~~
2500	~~$0.79~~	~~$1 981.05~~
5000	~~$0.76~~	~~$3 820.65~~

Current price of EEU-TP1V561 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

MAL202190544E3

CAP ALUM 68UF 20% 63V AXIAL

672D226H060CG5C

CAP ALUM 22UF 60V RADIAL

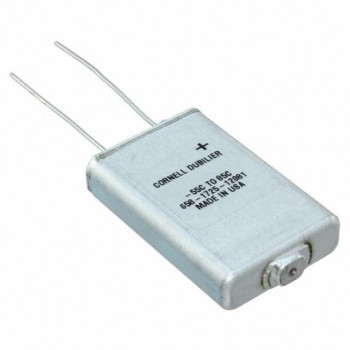

THA582M035AD0C
