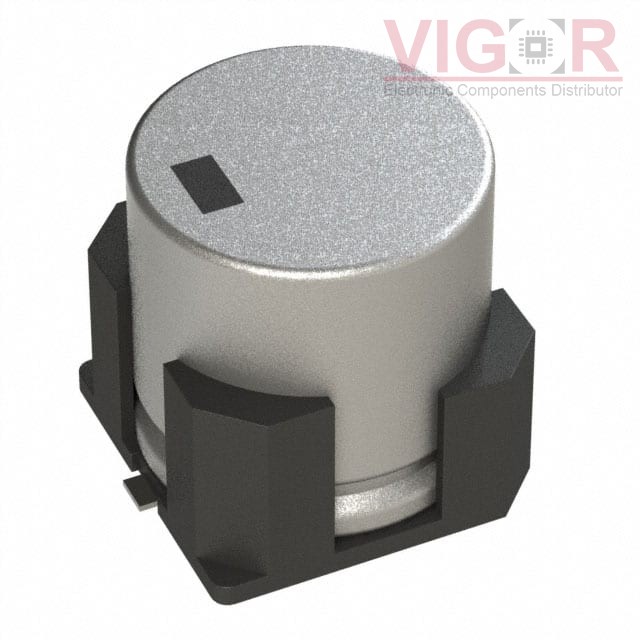

EEE-TP1H102M

Part No :: EEE-TP1H102M

Manufacturer: Panasonic

Description: CAP ALUM 1000UF 20% 50V RADIAL

Catalog: Aluminum Electrolytic Capacitors

DataSheet: EEE-TP1H102M PDF

Availability: 23 pieces

Current price of EEE-TP1H102M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EEE-TP1H102M Specifications

Type	Description
Series:	TP
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Capacitance:	1000 µF
Tolerance:	±20%
Voltage - Rated:	50 V
ESR (Equivalent Series Resistance):	78mOhm @ 100kHz
Lifetime @ Temp.:	3000 Hrs @ 125°C
Operating Temperature:	-55°C ~ 125°C
Polarization:	Polar
Ratings:	AEC-Q200
Applications:	Automotive, High Temperature Reflow
Ripple Current @ Low Frequency:	1.575 A @ 120 Hz
Ripple Current @ High Frequency:	2.1 A @ 100 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.709" Dia (18.00mm)
Height - Seated (Max):	0.669" (17.00mm)
Surface Mount Land Size:	0.748" L x 0.748" W (19.00mm x 19.00mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD
