ECA-1AHG101B

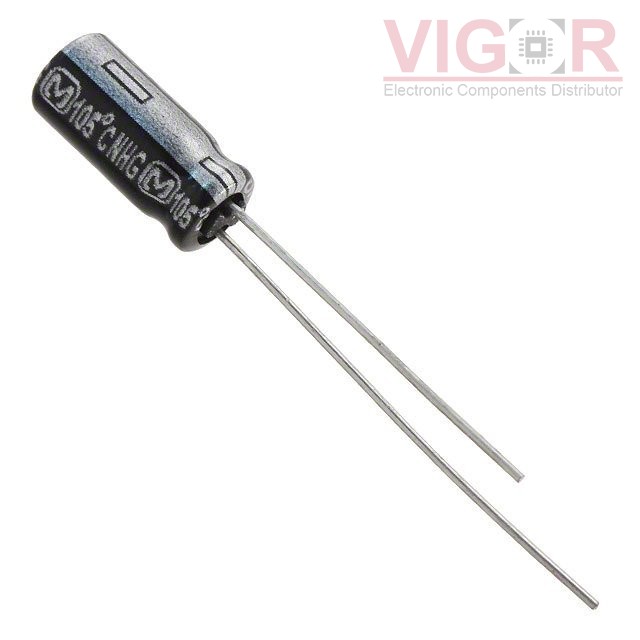

Image is for reference,
please contact us to get the real picture

Part No :: ECA-1AHG101B

Manufacturer: Panasonic

Description: CAP ALUM 100UF 20% 10V RADIAL

Catalog: Aluminum Electrolytic Capacitors

DataSheet: ECA-1AHG101B PDF

Availability: 0 pieces

Unit Price: ~~$0.05340~~

Current price of ECA-1AHG101B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ECA-1AHG101B Specifications

Type	Description
Series:	NHG
Package:	Tape & Box (TB)
Part Status:	Active
Capacitance:	100 µF
Tolerance:	±20%
Voltage - Rated:	10 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	1000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	110 mA @ 120 Hz
Ripple Current @ High Frequency:	165 mA @ 100 kHz
Impedance:	-
Lead Spacing:	0.197" (5.00mm)
Size / Dimension:	0.197" Dia (5.00mm)
Height - Seated (Max):	0.433" (11.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Please confirm the specifications of the products when ordering.
