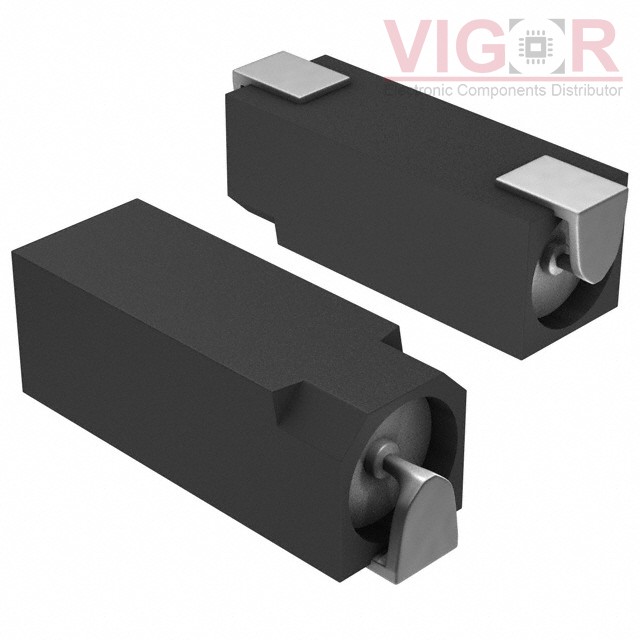

MAL213966229E3

Part No :: MAL213966229E3

Manufacturer: Vishay BC Components/Beyshlag/Draloric

VIGOR # :: 956116

Description: CAP ALUM 22UF 20% 25V SMD

Catalog: Aluminum Electrolytic Capacitors

DataSheet: MAL213966229E3 PDF

Country of origin: -

Date code: -

MAL213966229E3 Specifications

Type	Description
Series:	139 CLL
Package:	Tape & Reel (TR)
Part Status:	Active
Capacitance:	22 µF
Tolerance:	±20%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	10Ohm
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	-
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	-
Ripple Current @ High Frequency:	62.4 mA @ 10 kHz
Impedance:	5.5 Ohms
Lead Spacing:	-
Size / Dimension:	0.563" L x 0.244" W (14.30mm x 6.20mm)
Height - Seated (Max):	0.272" (6.90mm)
Surface Mount Land Size:	0.563" L x 0.244" W (14.30mm x 6.20mm)
Mounting Type:	Surface Mount
Package / Case:	Nonstandard SMD

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Feb 01 - Feb 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.83~~	~~$1.83~~
1400	~~$1.23~~	~~$1 723.29~~

Current price of MAL213966229E3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

EXV687M6R3A9PAA

CAP ALUM 680UF 20% 6.3V SMD

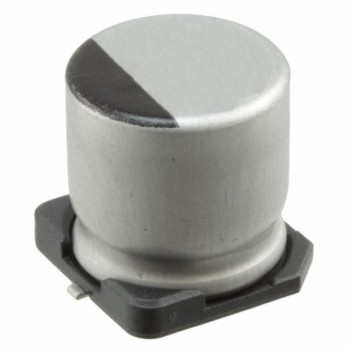

UWG1C331MNL1GS

CAP ALUM 330UF 20% 16V SMD

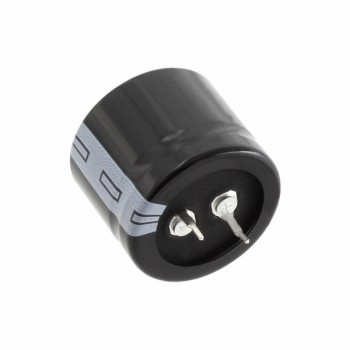

B43601C2687M80
