EEV-TG1H100P

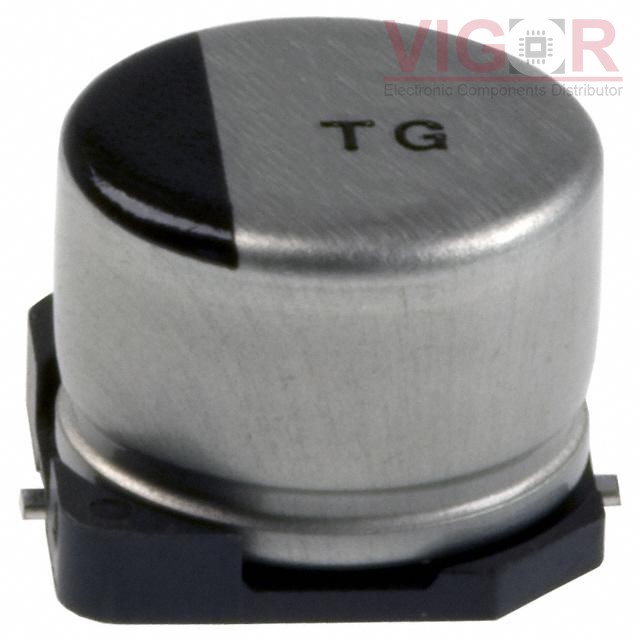

Product image
Product thumb
Part No :

EEV-TG1H100P

Manufacturer
Panasonic
VIGOR # :

957059

Description
CAP ALUM 10UF 20% 50V SMD
Catalog
Aluminum Electrolytic Capacitors
DataSheet
EEV-TG1H100P PDF
Country of origin
-
Date code
-
ads
EEV-TG1H100P Specifications
Type Description
Series:TG
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Capacitance:10 µF
Tolerance:±20%
Voltage - Rated:50 V
ESR (Equivalent Series Resistance):1.6Ohm @ 100kHz
Lifetime @ Temp.:1000 Hrs @ 125°C
Operating Temperature:-40°C ~ 125°C
Polarization:Polar
Ratings:AEC-Q200
Applications:Automotive
Ripple Current @ Low Frequency:52 mA @ 120 Hz
Ripple Current @ High Frequency:80 mA @ 100 kHz
Impedance:-
Lead Spacing:-
Size / Dimension:0.315" Dia (8.00mm)
Height - Seated (Max):0.244" (6.20mm)
Surface Mount Land Size:0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type:Surface Mount
Package / Case:Radial, Can - SMD
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 6
Shipped from
HK warehouse
Expected Shipping Date
Jan 26 - Jan 30 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.90 $0.90

Current price of EEV-TG1H100P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
