ECA-2CHG220

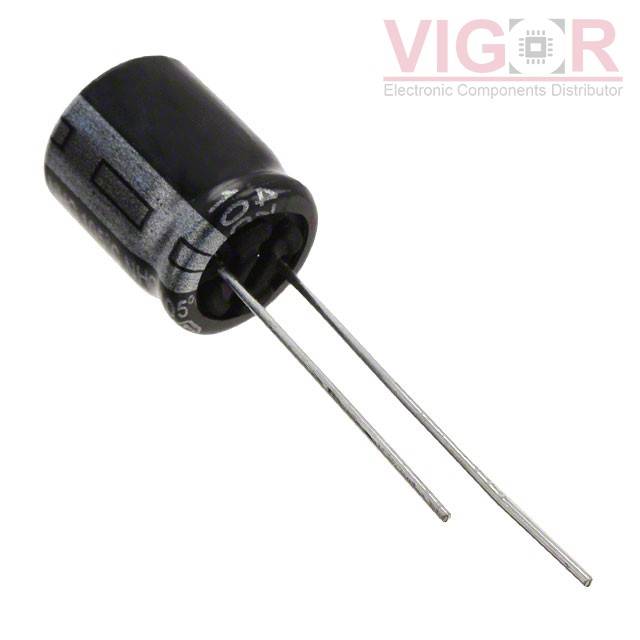

Product image
Product thumb
Part No :

ECA-2CHG220

Manufacturer
Panasonic
VIGOR # :

957599

Description
CAP ALUM 22UF 20% 160V RADIAL
Catalog
Aluminum Electrolytic Capacitors
DataSheet
ECA-2CHG220 PDF
Country of origin
-
Date code
-
ads
ECA-2CHG220 Specifications
Type Description
Series:NHG
Package:Bulk
Part Status:Active
Capacitance:22 µF
Tolerance:±20%
Voltage - Rated:160 V
ESR (Equivalent Series Resistance):-
Lifetime @ Temp.:2000 Hrs @ 105°C
Operating Temperature:-25°C ~ 105°C
Polarization:Polar
Ratings:-
Applications:General Purpose
Ripple Current @ Low Frequency:130 mA @ 120 Hz
Ripple Current @ High Frequency:195 mA @ 100 kHz
Impedance:-
Lead Spacing:0.197" (5.00mm)
Size / Dimension:0.394" Dia (10.00mm)
Height - Seated (Max):0.866" (22.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Jan 25 - Jan 29 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.77 $0.77
10 $0.54 $5.45
100 $0.36 $35.87
500 $0.27 $132.86
1000 $0.23 $225.85
2500 $0.21 $531.40
5000 $0.20 $996.40

Current price of ECA-2CHG220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
USW0J101MDD1TE

USW0J101MDD1TE

CAP ALUM 100UF 20% 6.3V RADIAL

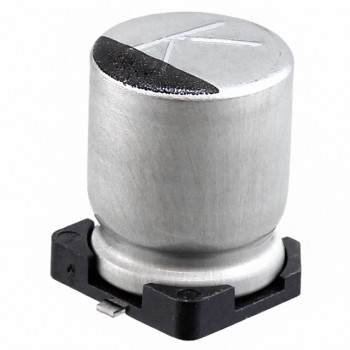

25TXV100M8X10.5
