B41580A8100M003

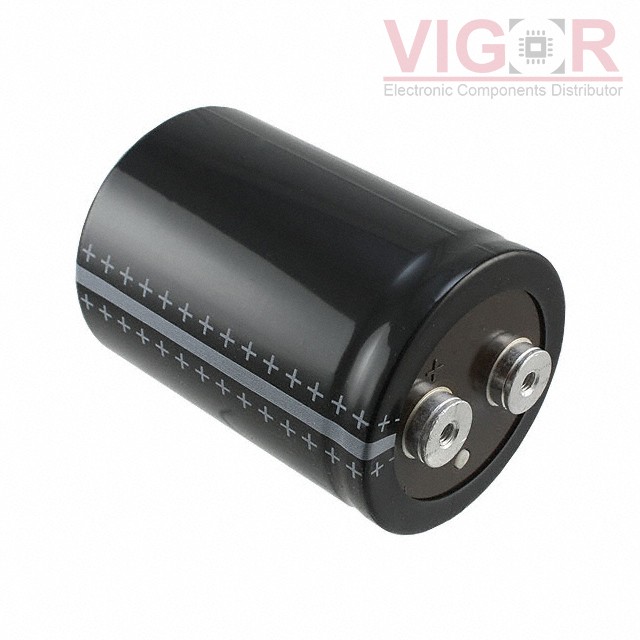

Image is for reference,
please contact us to get the real picture

Part No :: B41580A8100M003

Manufacturer: TDK EPCOS

Description: CAP ALUM 100000UF 20% 63V SCREW

Catalog: Aluminum Electrolytic Capacitors

DataSheet: B41580A8100M003 PDF

Availability: 0 pieces

Unit Price: ~~$91.13688~~

Current price of B41580A8100M003 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B41580A8100M003 Specifications

Type	Description
Series:	B41580
Package:	Bulk
Part Status:	Active
Capacitance:	100000 µF
Tolerance:	±20%
Voltage - Rated:	63 V
ESR (Equivalent Series Resistance):	5mOhm @ 100Hz
Lifetime @ Temp.:	3000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	23 A @ 100 Hz
Ripple Current @ High Frequency:	-
Impedance:	6.6 mOhms
Lead Spacing:	1.248" (31.70mm)
Size / Dimension:	3.028" Dia (76.90mm)
Height - Seated (Max):	5.677" (144.20mm)
Surface Mount Land Size:	-
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can - Screw Terminals

Please confirm the specifications of the products when ordering.
