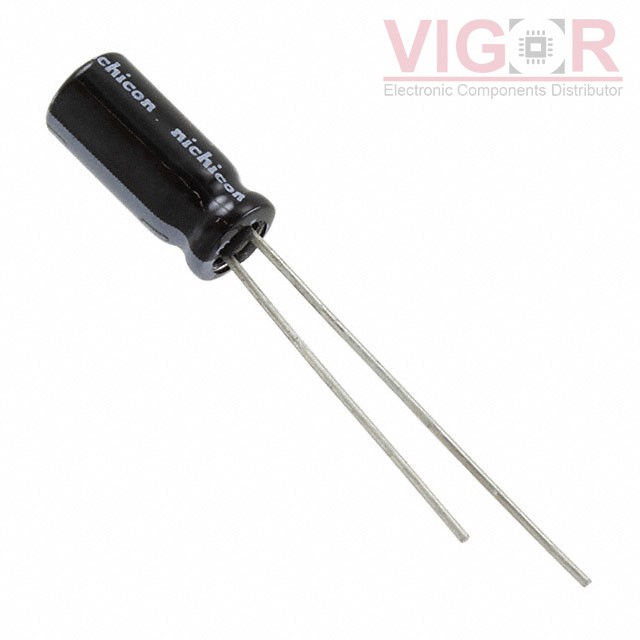

UHV1E680MDD

Part No :: UHV1E680MDD

Manufacturer: Nichicon

VIGOR # :: 969282

Description: CAP ALUM 68UF 20% 25V RADIAL

Catalog: Aluminum Electrolytic Capacitors

DataSheet: UHV1E680MDD PDF

Country of origin: -

Date code: -

UHV1E680MDD Specifications

Type	Description
Series:	UHV
Package:	Bulk
Part Status:	Active
Capacitance:	68 µF
Tolerance:	±20%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	5000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	144 mA @ 120 Hz
Ripple Current @ High Frequency:	360 mA @ 100 kHz
Impedance:	230 mOhms
Lead Spacing:	0.079" (2.00mm)
Size / Dimension:	0.197" Dia (5.00mm)
Height - Seated (Max):	0.492" (12.50mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 2263

Shipped from

HK warehouse

Expected Shipping Date

Jan 04 - Jan 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.37~~	~~$0.37~~
10	~~$0.26~~	~~$2.58~~
100	~~$0.15~~	~~$14.58~~
500	~~$0.10~~	~~$51.48~~
1000	~~$0.09~~	~~$90.08~~
2500	~~$0.09~~	~~$214.48~~
5000	~~$0.08~~	~~$396.85~~

Current price of UHV1E680MDD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

UCB0J102MNL1GS

CAP ALUM 1000UF 20% 6.3V SMD

16MXC8200MEFCSN22X25

CAP ALUM 8200UF 20% 16V SNAP

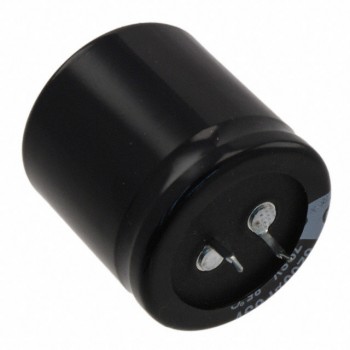

SLPX683M010H7P3
